Techno Print India manufactures screen printing machines for plastic, glass and metal containers, including flat, round and tapered surfaces. Our machine range covers applications like plastic bottles, glass bottles, steel bottles, cosmetic jars, pharmaceutical containers, crates, jerry cans, plastic buckets, pails, drums and barrels.
We are an ISO & CE Certified and have an experience of 35+ years of screen printing machine manufacturing with machines installed in 60+ countries.
Different types available are:
CNC Servo Screen Printing Machine: for high-speed, programmable multi-colour registration.
Mechanical Screen Printing Machine: for reliable, cost-effective standard production.
| Factor | CNC Servo Range | Mechanical Conventional Range |
|---|---|---|
| Motion control | Servo-based | CAM-based |
| Main models | SKR600S, SKR400TSFR, SKR400SFI | SKR600, SKR1000L, SKR1500 |
| Product | Round, Flat, Flat & Round | Round and Round Tapered Products |
| Registration | Servo/CNC-controlled configurations | Mechanical/CAM-based Positioning |
| Applications | Bottles, Jars, Tubes and Containers, Crates, Jerry Cans | Pails Buckets, Bottles, Jars, Drums and Barrels |
| Product selection | Based on Shapes, Dimensions and Production Quantities | Based on Shapes, Dimensions and Production Quantities |
| Model | Type | Surface | Print Dimension | Printing Output** | Power Consumption | Best For |
|---|---|---|---|---|---|---|

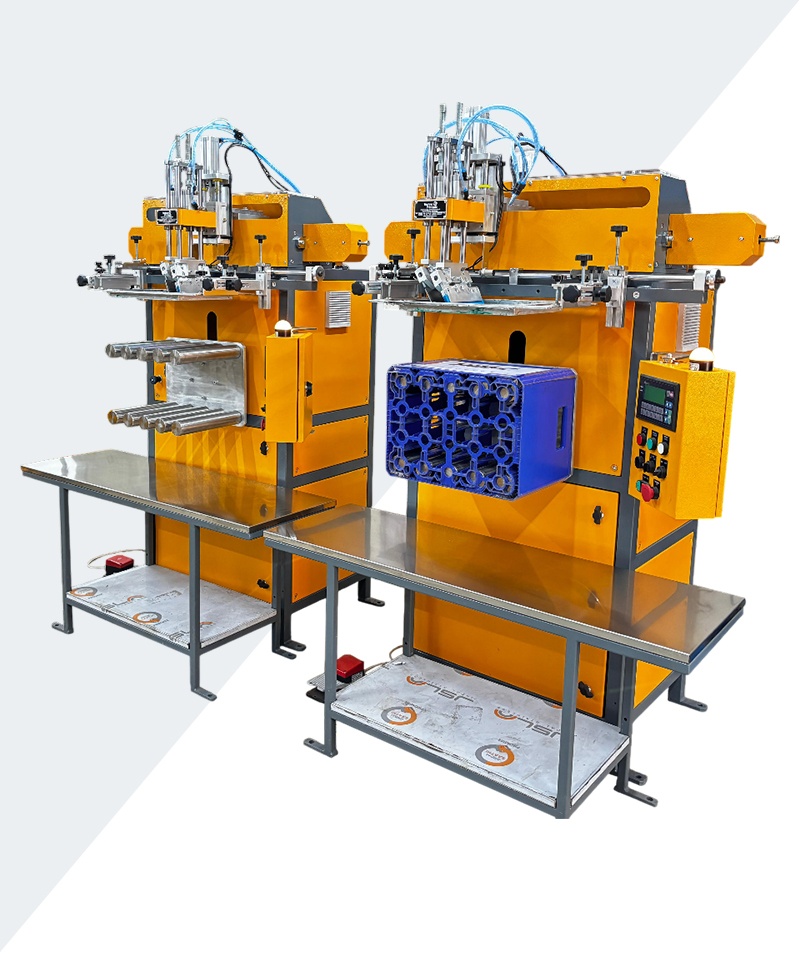

| SKR400SFI | CNC Servo | Flat | 200 x 250 mm | 1000 impr/hr | 2 KW | Crates, jerry cans |

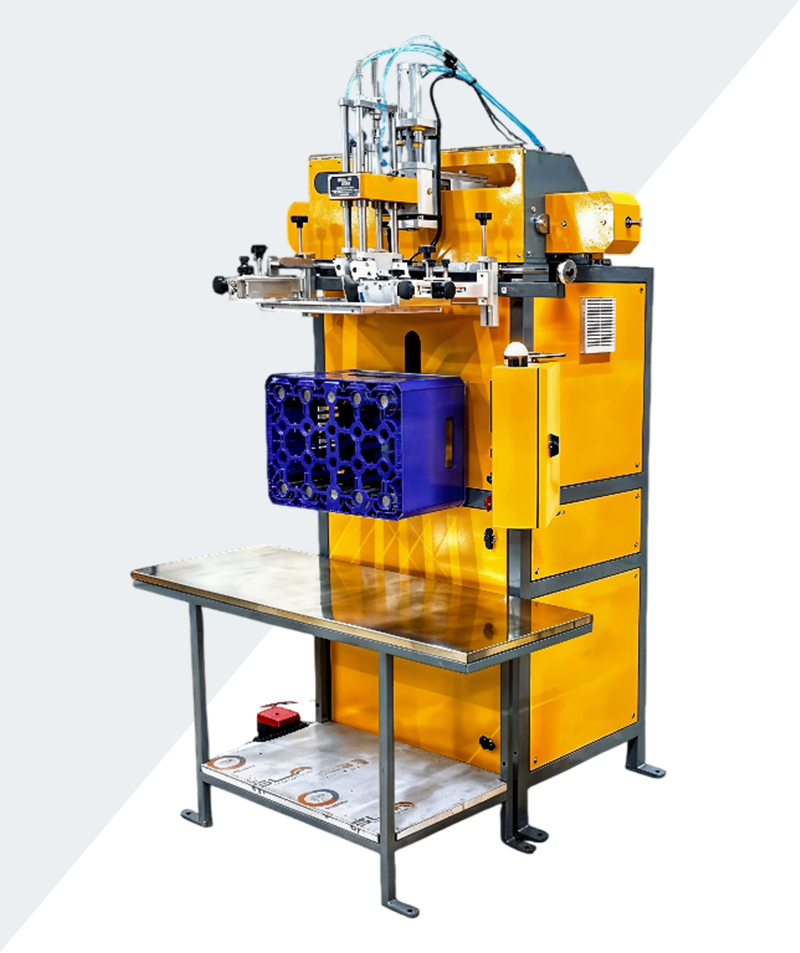

| SKR400TSFR | CNC Servo | Flat & Round | 400 x 250 mm | 1000 impr/hr | 2 KW | Mixed flat/round product lines |
| SKR 600S | CNC Servo (Dual-Axis) | Round | 150Ø x 360H mm | 1000 impr/hr | 2.5 KW | Cosmetic/pharma bottles & jars, container |

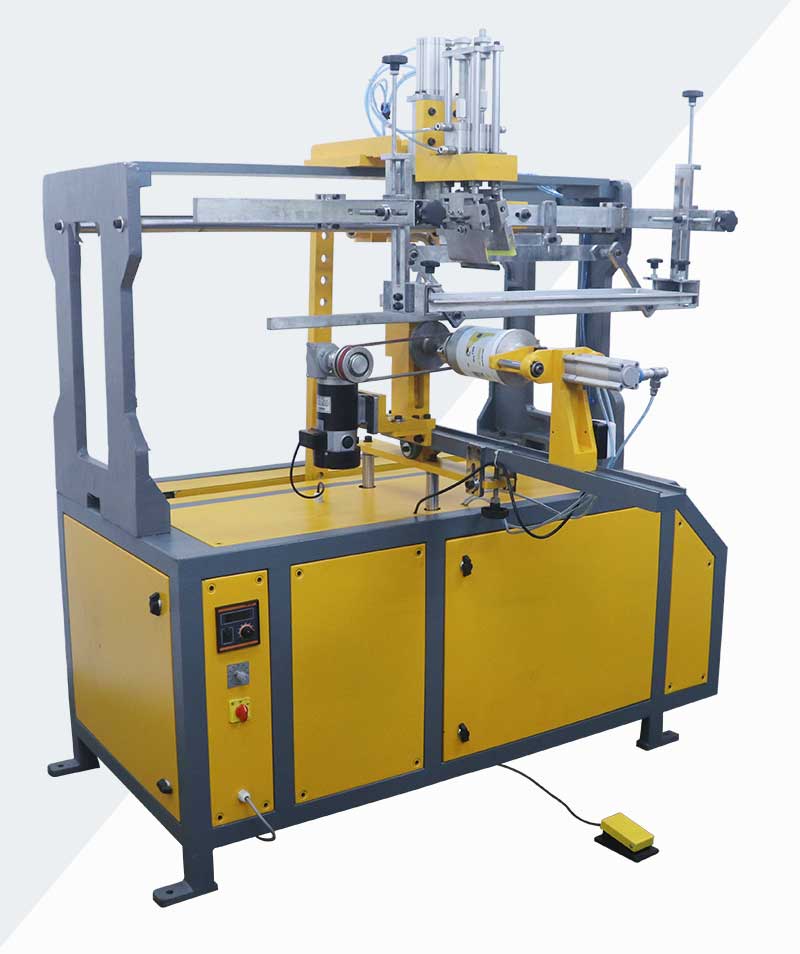

| SKR 600 | Mechanical | Round | 200Ø x 225H mm | 1400 impr/hr | 1 KW | Round bottles, jars, small pails |
| SKR 1000L | Mechanical | Round | 300Ø x 350H mm | 1400 impr/hr | 1.5 KW | Plastic buckets, paint containers |
| SKR 1500 | Mechanical | Round | 400Ø x 400H mm | 600 impr/hr | 1.5 KW | Drums, barrels, large buckets |
**Actual output depends on the product dimensions and capacity.
Products like plastic, glass, and metal including:
The SKR 600S CNC servo machine is suitable for plastic bottles, jars, cosmetic containers, pharmaceutical bottles/jars, steel bottles, glass containers and tubes with auto-registration printing.
Also the mechanical model SKR600 with the provision of bottom lock is also suitable for plastic bottles, jars, plastic bottles and pharmaceutical bottles/jars with auto-registration printing.
The capacities range from 1400 pcs/hour for the SKR600 and SKR1000L & up to 600 pcs/hour for the SKR1500.
CNC models capacities of up to 1,000 impressions/hour for SKR600S, SKR400SFI and SKR400TSFR.

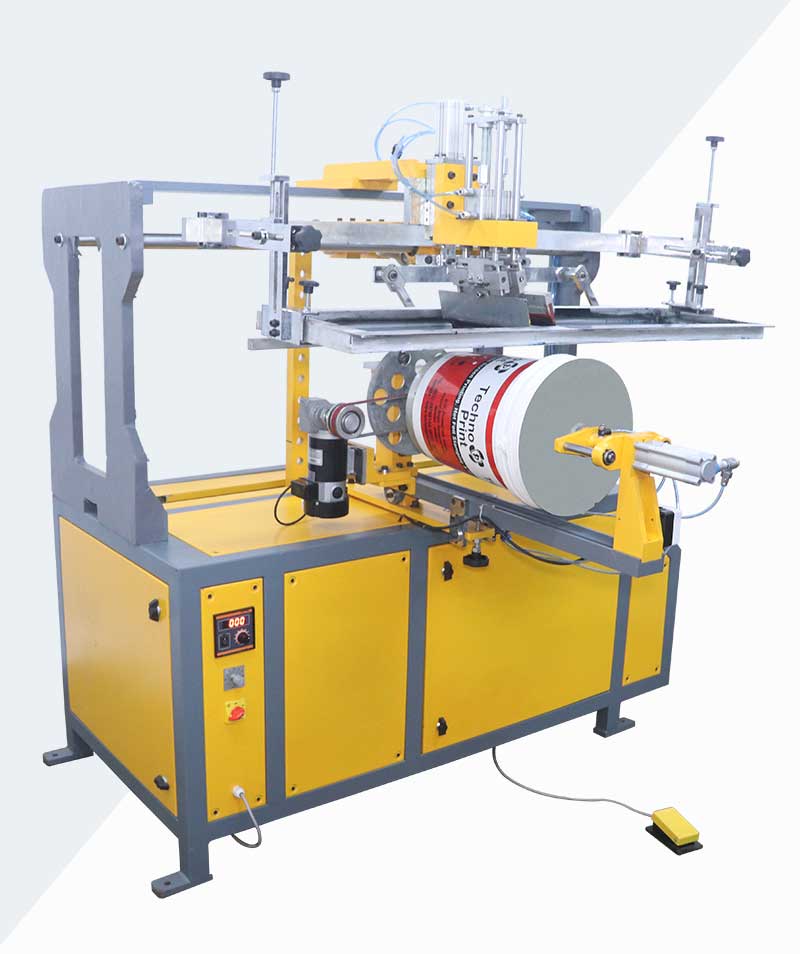

The SKR1500 is suitable for round drums, barrels, large buckets, basins and other large containers. It has a printing dimension of 400 mm diameter × 400 mm height.
The SKR1000L mechanical screen printing machine is best for paint buckets or pails and household containers, printing up to 1400 pcs/hr.
The essential components/equipment of a complete screen-printing setup includes:
The right screen printing machine for a startup should be selected according to the product shape, dimensions, application and required production capacity.
For example:
The cost of a screen printing machine depends on its machine type, product dimensions, printing requirements, level of automation and configuration. Starting with 4 Lakhs for the Conventional Machines which goes up to 8 lakhs and 4.5 Lakhs for the CNC Servo Models which can go up to 1 cr.
A screen printing machine transfers ink through a stencil on a mesh screen onto the surface of the product. On Techno Print India machines, this process is controlled mechanically or by servo drive depending on the model:
Techno Print India is an established industry engaged in building and development of hot stamping & heat transfer printing machine in India.
